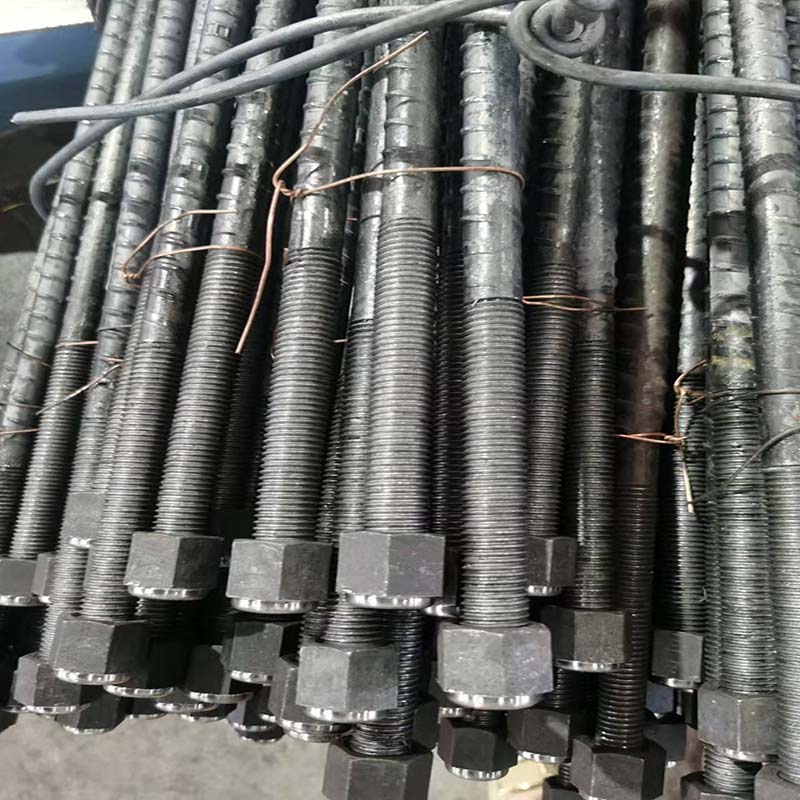

Steel Re Bar

Description:

Resin Anchor Bar is a highly efficient reinforcement material widely used in geotechnical engineering and mine support, and its core material usually adopts Steel Re Bar (Steel Reinforcement Bar) or High Strength Rebar (High Strength Reinforcement Bar) to ensure its excellent mechanical properties and durability. Resin anchors work by injecting a resin adhesive into the drilled holes, where it is tightly bonded to the rebar to form a solid anchoring system. This design not only effectively resists deformation and sliding of the rock mass, but also significantly improves the stability of the overall structure.

Resin anchors have a higher load carrying capacity and longer service life than traditional mechanical anchors. The High Strength Rebar maintains excellent tensile strength under extreme loading conditions, while the fast curing properties of the resin adhesive ensure efficient and reliable construction. In addition, resin anchors are easy and convenient to install and are suitable for a variety of complex geological conditions, and are widely used in tunnels, mines, slope support and other engineering fields. Its excellent performance and adaptability make it an indispensable reinforcement solution in modern geotechnical engineering.

Specification

Product Description:

Left Handed Anchor Pole, for roadway support, is characterized by high strength, reasonable structure and large preload force. Left-handed anchor can increase the binding force on the surrounding rock, and the installation is mechanized, which is easier and faster. Lefty anchors can be end anchors, extension anchors and full anchors. According to the steel grade, the left-hand anchor is classified as MG335/MG500/MG600, and the diameter of the rod body is from 16mm to 22mm, which can also be processed according to the construction requirements. Left-hand threaded steel anchor without longitudinal ribs has high strength, reasonable structure, large preload, can automatically adjust the direction of force, increase the binding force on the surrounding rock, and can be mechanized for quick installation. It can be used as end anchor, extension anchor and full anchor, mainly used for high strength support of large deformation roadway in highland pressure mines, and also can be used for high strength roadway support of railroad, hydropower and other kinds of projects. The anchors have high strength, reasonable structure, large preload, can automatically adjust the direction of force, increase the binding force on the surrounding rock, and can be mechanized for quick installation. It can be used as end anchor, extension anchor and full anchor, mainly used for high strength support of large deformation roadway in high pressure mines, and also can be used for high strength, permanent roadway support of railroads, hydropower and other projects.

Longitudinal ribless threaded steel type resin anchor metal rod body use and installation:

1.Determine the anchor hole position according to the design requirements, there are drilling rigs to drill holes.

2. Blow out the rock dust in the hole with pressurized air.

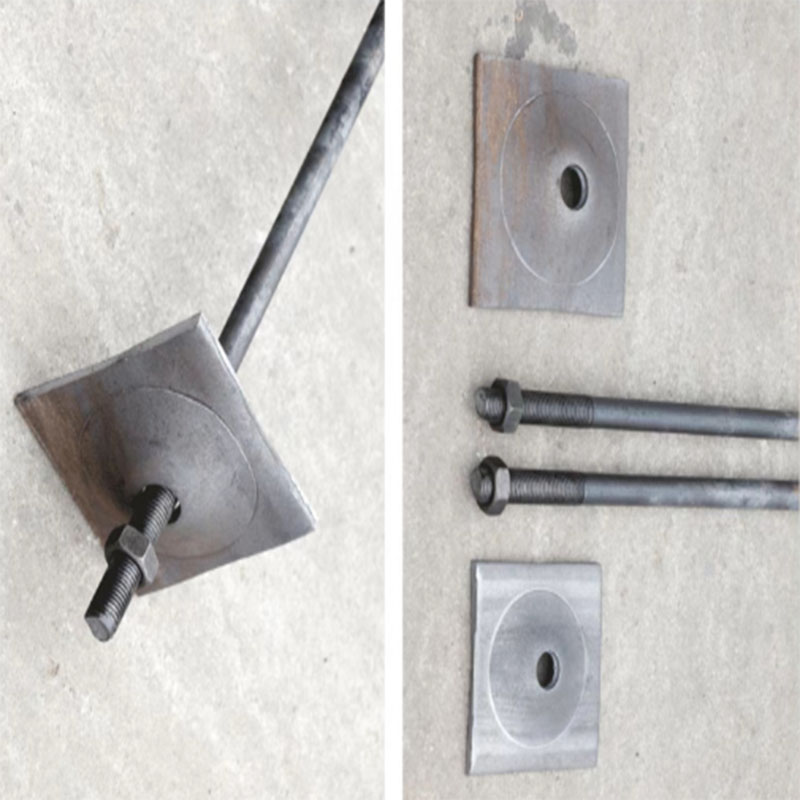

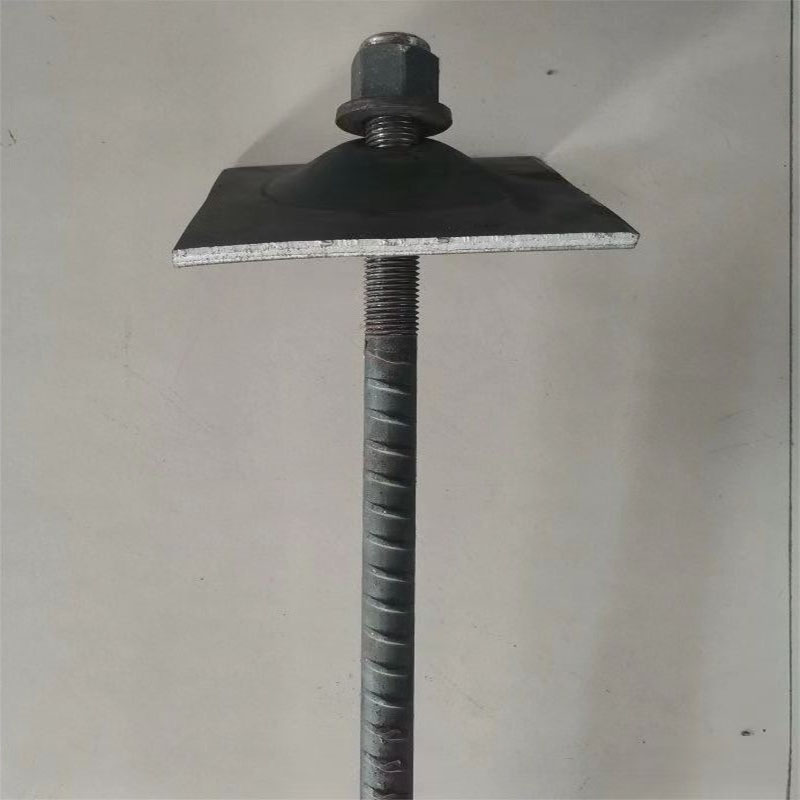

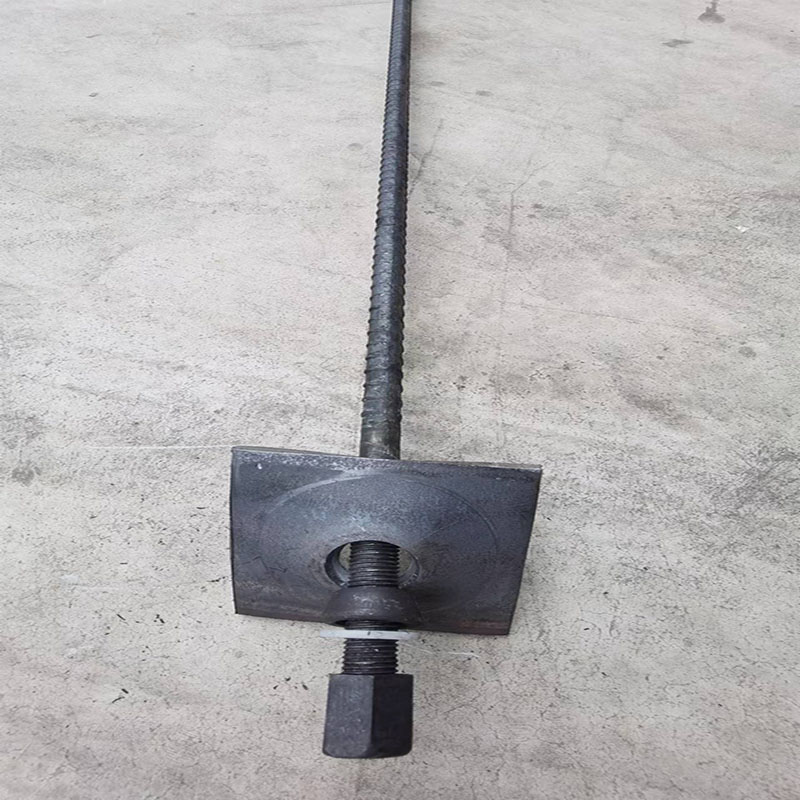

3. Send the anchoring agent into the bottom of the hole, hold it against the anchor rod to start mixing (the mixing time is specified according to the model of the anchoring agent), after mixing, unload the mixing apparatus, and after reaching the waiting time, unload the mixing connecting head, install the anchor disk, ball washer, friction washer, nut, and tighten the nut with a special wrench.
