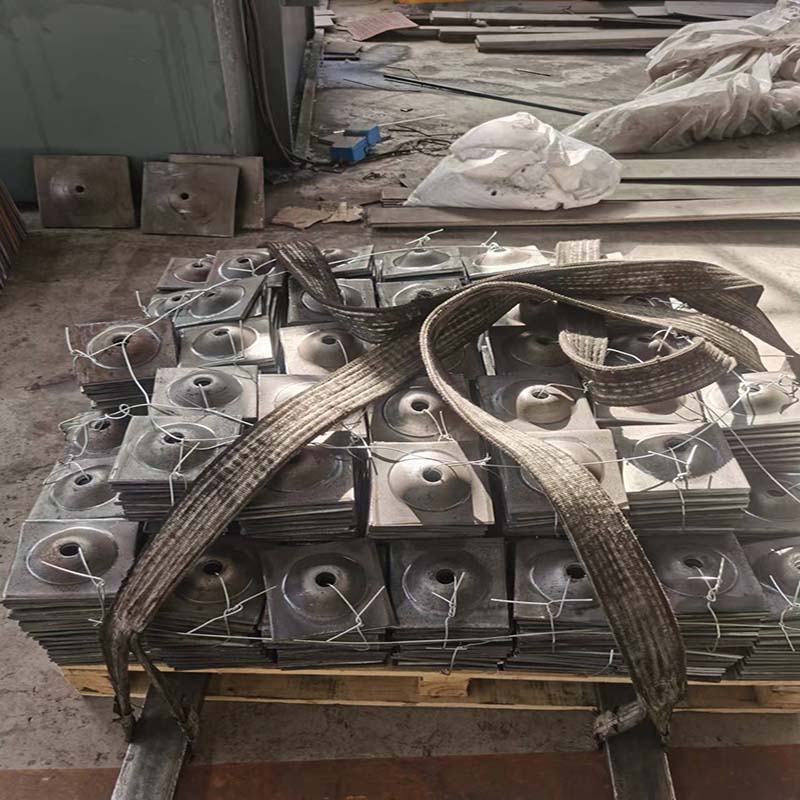

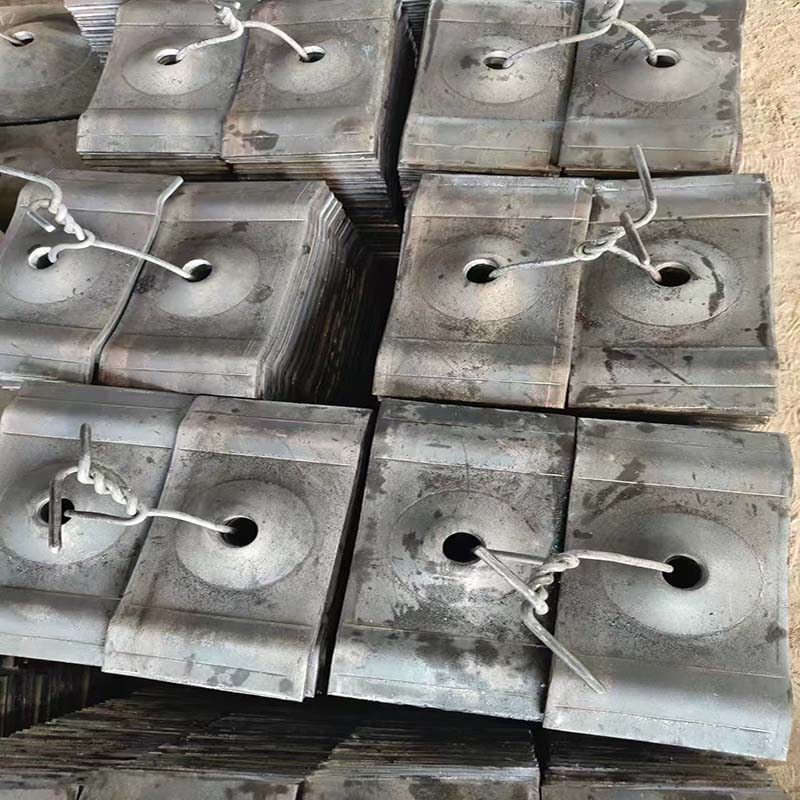

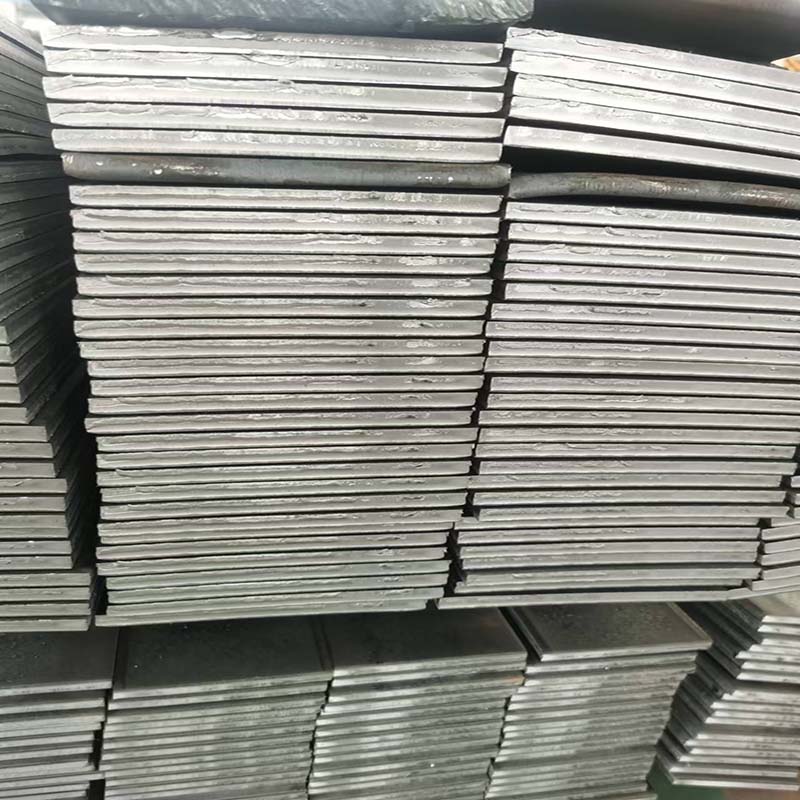

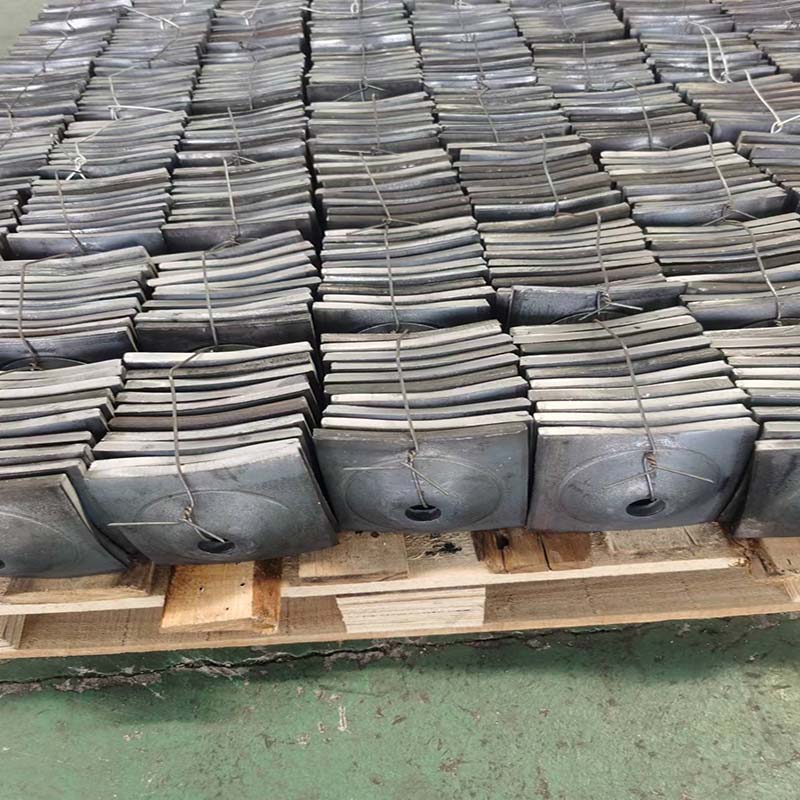

Coal Mine Support Tray Anchor Plate
Advantage:
Support Tray Anchor Plate plays a crucial role in enhancing the stability and safety of underground mining operations. Specifically designed for Coal Mine Anchor systems, these plates provide robust support to the tray structures, ensuring efficient load distribution. Underground Mining Anchor Plates are engineered to withstand harsh conditions, offering durability and reliability in challenging environments. Their innovative design significantly improves the overall structural integrity of mining tunnels, making them indispensable in modern mining practices.
Product Description:
The Coal Mine Support Tray Anchor Plate is a critical component in ensuring the stability and safety of underground mining operations. Designed to provide robust support to tray systems, this anchor plate effectively distributes loads and reinforces the structural integrity of mining tunnels. Its durable construction allows it to withstand the harsh conditions of coal mines, making it a reliable solution for long-term use.
Similarly, the Mining Anchor Plate is engineered to enhance the performance of anchoring systems in various mining environments. It offers exceptional strength and resistance to deformation, ensuring that support structures remain secure even under extreme pressure. This plate is essential for maintaining the safety of miners and the efficiency of mining operations.
Underground Mining Anchor Plates are specifically tailored for the unique challenges of subterranean environments. These plates are crafted from high-quality materials to endure heavy loads, vibrations, and corrosive elements. Their innovative design ensures optimal load distribution, reducing the risk of tunnel collapse and improving overall operational safety. Together, these anchor plates play a vital role in modern mining, providing the foundation for secure and efficient underground operations.
Specifications and parameters
Pallet Size（mm） | carrying capacity (kn) | Pallet Size（mm） | carrying capacity (kn) | note |
120x120x5 | ≧100 | 200x200x10 | ≧360 | Partial specifications |
120x120x6 | ≧115 | 200x200×12 | ≧420 | |
120x120x8 | ≧130 | 250x250×8 | ≧320 | |
150x150×5 | ≧135 | 250x250x10 | ≧400 | |
150x150x6 | ≧170 | 250×250x12 | ≧440 | |
150x150x8 | ≧230 | 300x300x10 | ≧420 | |
150x150x10 | ≧290 | 300x300x12 | ≧480 | |
120x120x10 | ≧260 | 300x300x14 | ≧520 |
Product Details:
Anchor plate changes the mechanical state of surrounding rock through the interaction between anchor rods and surrounding rock, forming a whole and stable rock belt around the roadway, thus effectively maintaining the stability of the roadway. This kind of support method makes full use of the joint action of anchor rods and surrounding rock, and is a kind of proactive support method. In the field of mine support, the application of anchor plate marks a major innovation in support technology, providing more reliable support for mine safety.
Product Features:
Anchor rod tray and anchor cable tray are made of high-strength alloy plate with special shape design, which can realize excellent force effect. Their lightweight structure makes installation more convenient, and at the same time, they match perfectly with all kinds of anchor rods and anchor cables, which significantly improves the surface control effect. This design not only enhances the overall performance of the support system, but also improves the construction efficiency, which is an ideal choice for mine support.
Usage:

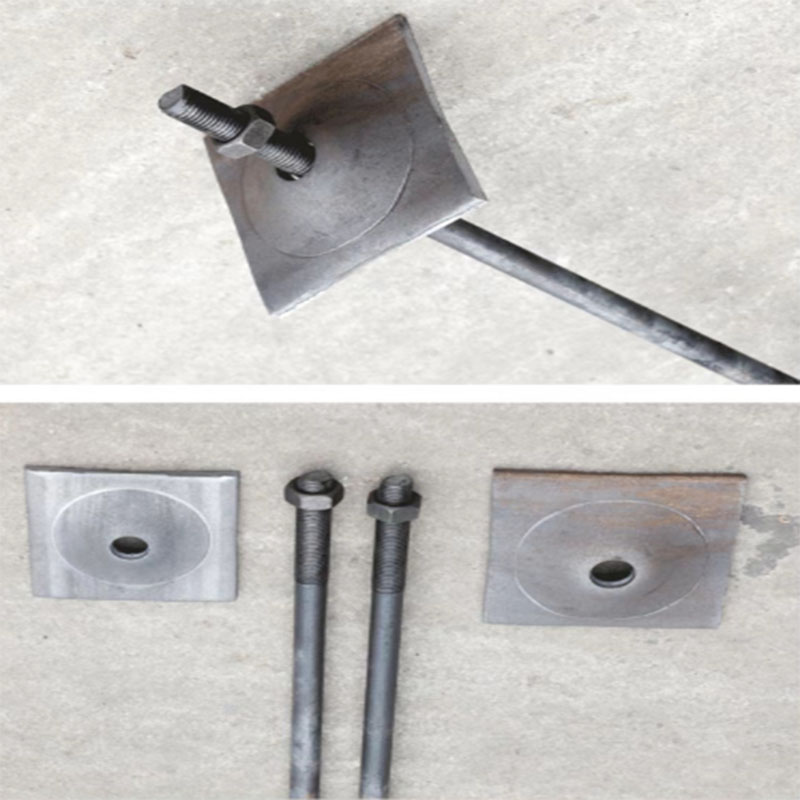

Anchor disk and anchor metal rod and nut form a set of anchor to use.
1、First determine the hole position of the anchor according to the design requirements, and drill the hole with drilling rig.
2、Blow the rock powder in the hole with pressurized air.
3、The diameter of the rock hole is 6-12mm larger than the diameter of the anchor rod.
4、Feed the anchoring agent into the bottom hole with the anchor rod, start the mixing device for mixing, and strictly control the mixing time according to the requirement of resin anchoring agent.
5、After reaching the waiting time, put on the anchor disk and tighten the nut.
